PROPDRIVE v2 motors are designed to perform right out of the box with tight windings, smooth bearings, correctly rated magnets, precision cut stator and balanced rotors.



We design and build the PROPDRIVE v2 motors completely in-house allowing us to control every aspect of production. We control the entire production line from material sourcing to machining, balancing and final assembly. PROPDRIVE motors can be trusted to provide years of reliable service at a price every modeler can afford.

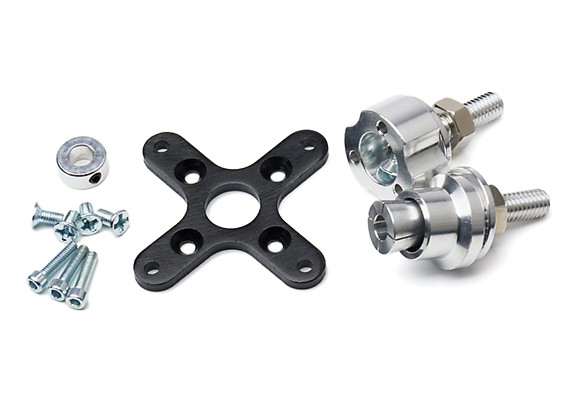

We have included a collet style adapter, as well as a bolt on prop adapter.



All performance figures are the result of realistic testing on our own motor dynos.



Specs:

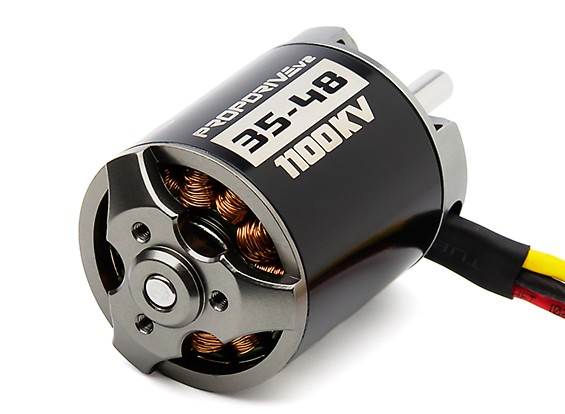

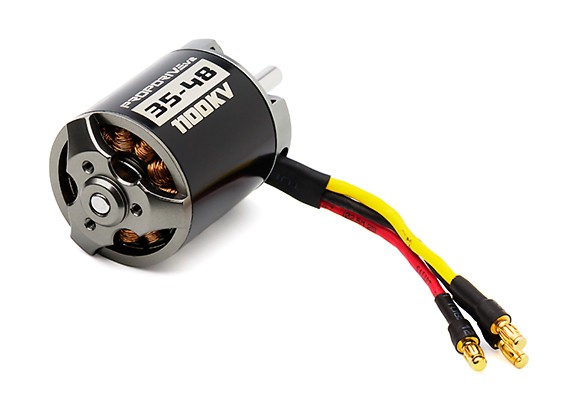

Model: PROPDRIVE v2 3548 1100KV

KV: 1100 KV

Max current: 70A

ESC: 80~100A

Cell count: 3s~4s Lipoly

Pole Count : 14

Bolt holes: 25mm

Bolt thread: M3

Shaft: 5mm

Connectors: 3.5mm Bullet

Weight: 185g
